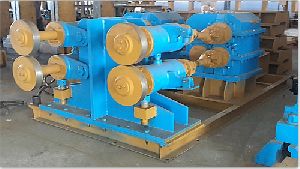

Feayures :

• Cantilever and pneumatic type Pinch Roll & Tail Breaker up to 360 MM CRS.
• Top roll raised pneumatically or lowered with bottom roll in adjustable finish.
• Pinch roll housing comprising sturdy welded construction.
• Pinch rolls feature wear resistant surface with anti friction bearing mounting support.
• Spindle provided for meeting the needs of adjustment of bottom pinch rolls
• Pinch rolls featuring use of sensors that allows precision breaking up to speed of hot flowing material.

Furnace Ejector Features

• Highly reliable operation
• Able to withstand harsh weather conditions
• Needs little or no maintenance

Furnace Pusher Features

• High-temperature uniformity
• Excellent resistance to corrosion
• Fully automatic operation

Straightening Machines Possess the following Technical Specifications and Features:

• It compromises two straightening disks; one mounted on a straightening shaft and other against the flanges of the beams.
• These straightening disks are backed by a support ring of larger size.
• There are hydraulic cylinders, which aligned with the axially displaceable discs via adjusting pistons.
• Pr-hardened rolled beams are fed into the machine, which are used for straightening any rolled, drawn or extruded metals.
• Our Straightening machines are also equipped with all safety standards.
• These are easily operable, Highely durable and Cost effective.
• These are made to deliver highest output with highest efficiency.

Feayures :

• Cantilever and pneumatic type Pinch Roll & Tail Breaker up to 360 MM CRS.
• Top roll raised pneumatically or lowered with bottom roll in adjustable finish.
• Pinch roll housing comprising sturdy welded construction.
• Pinch rolls feature wear resistant surface with anti friction bearing mounting support.
• Spindle provided for meeting the needs of adjustment of bottom pinch rolls
• Pinch rolls featuring use of sensors that allows precision breaking up to speed of hot flowing material.

The process of bending starts after Shearing of TMT Bars from Cold Shearing Machine installed after Cooling Bed.

After shearing of Standard 12 meter long Bundle of TMT Bars, it will get transfer to another 12 Meter Conveyor through Skid type transfer cooling Bed. The whole set of Bundles of 40-50 TMT Bars get transfer together through this cooling bed to the conveyor. The skid transfer type cooling bed consists of Chain, Dog, Sprocket and structure.

Skid Transfer Type Cooling Bed is 8+8 m = 16 Meter wide and 12 Meter long.  This is a slow speed transfer system, which keeps on moving at a very slow speed and paralley labor bundles 10 kg TMT Bars which automatically gets transfer to the Delivery Roller Table through kick off system. In this Skid Transfer type Cooling Bed, the short length of TMT Bars, (which is left at the end after cutting of all 12 Meter TMT Bars), are transferred at the end time. This short length material, after reaching to the conveyor from skid transfer, is thrown out at the open space.

Our Bar Bending Machine Possess the following Technical Specifications and Features:

• Frame on base plate with 4 guiding wheels
• Binding unit with feeding and twisting unit and wire guide track.
• Hydraulic unit with pump and electric motor.
• Control console with control panel and programmable controller (PLC)
• Wire magazine for the binding wire
